Trefoil Clamp

Price 70 INR/ Unit

Get a Price/Quote

MOQ : 50 Units

Trefoil Clamp Specification

Weight
0.3 kg 2.5 kg (depending on size and material)

Density
2.7 Gram per cubic centimeter(g/cm3)

Tensile Strength
80-100 MPa (Aluminium), 480-620 MPa (Steel)

Metal Type
Aluminium, Stainless Steel, GI (Galvanized Iron), Mild Steel

Material Grade
Aluminium (6063/6061), Stainless Steel (304/316), MS (IS 2062)

Usage
For Pipe Fitting and Construction Purpose

Material
Other

Structure
T Clamp

Standard
IEC 61914, IS 5568 or as per customer requirement

Product Type
Clamp

Shape
Round

Length
84-224 Millimeter (mm)

Application
Securing and cleating of LV, MV, HV power cables in trefoil formation

Temperature Range
-40C to +90C

Corrosion Resistance
High, suitable for indoor and outdoor installations

Finish
Polished, HDG (Hot Dip Galvanized), Electro-Galvanized, Plain or Powder Coated

Cable Diameter Range
18 mm 150 mm (custom sizes available)

Fire Retardant
Yes

Insulation Resistance
> 1 G

Available Accessories
Nuts, Bolts, Washers (as required)

Mounting Type
Base Mount with Fixing Hole

Trefoil Clamp Trade Information

Minimum Order Quantity
50 Units

FOB Port
Mundra

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
500 Units Per Day

Delivery Time
1 Week

Sample Available
No

Main Domestic Market
All India

About Trefoil Clamp

FRP Trefoil Clamp/Cable Cleats

AERON Trefoil Clamps/ Cable Cleats are basically used for spreading solo core cables in Trefoil touching pattern that helps in maintaining magnetic symmetry thus without any electromagnetic heating and current loss.

AERON Trefoil clamps are fabricated employing molding procedure from Virgin Glass Filled substances. Glass filled materials are employed to enhance the elasticity of the clamp and to shun the breaking down of the clamps from the hook during the tightening process of three single core cables.

Application

Trefoil clamps are taken into use for the high voltage single core or for the cables of larger sizes where the rating of current is high & where the 3 core cables are not accessible.

FRP trefoil clamps are appropriate for partisan single core HDE, PVC, XLPE, XLPE insulated aluminum, earth and un-earth, un- armored, power cables from 1.1 kilo watts to 132 kilo watts grade. 3 phased AC circuits are used trefoil development in sub-stations, generation stations, thermal power stations, industrial installation, switchgear plants, straight and terminal kits through jointing kits etc. These are also used for outdoor or indoor and for horizontal or vertical moving cables interior of trenches or on galleries/ racks.

With the use of Nuts & Washers, Bolts, etc. three single core cables are made to fix into the Trefoil clamps as per the specifications of the clients. Aluminum Trefoil Clamps also offer these advantages to the customers.

Benefits of Aeron Trefoil Clamps

Higher Mechanical Strength
Durable as these are not affected by Chemicals & Acid, and Atmosphere.
Diminish chances of breaking of Hooks because of Glass filled Nylon substances.
Prevents loss of current and electromagnetic heating
Few changes in diameter of cable are also fixed conveniently and offers excellent mechanical strength because of simple design
Needed Tests for Clamps
Required Tests for Trefoil Clamps
Aeron Trefoil Clamps or Cable Cleats are tested suitably at CPRI to endure 50 KA short circuit current with spacing among Trefoil clamps set at one meter distance.
Distance at center between Trefoil clamps can be augmented for less fault level than 50 KA & so total necessities of clamps can be diminished thus reduction in cost.

Single Clamp

Aeron also provides variety of FRP single clamps or Cable Cleats. These can be availed in the sizes from 42mm to 120mm cable diameter.

Offered with MS zinc passivity hardware along with possible Hardware available in galvanized hot dip or SS 304

Features:

Sturdy in nature
Light weight
Easy to fix

Trefoil Clamp:

We are the leading FRP Clamps Manufacturer, Exporter, and Supplier in India. The advantage of our FRP Clamps is that these remain corrosion resistant of the FRP itself. These FRP Clamps are majorly used in Marine Industry, such as in jetty, off shore platforms, ports, etc. Our FRP Clamps are offered at the market leading prices.

Applications:

Jetty
Ports
Off shore platforms

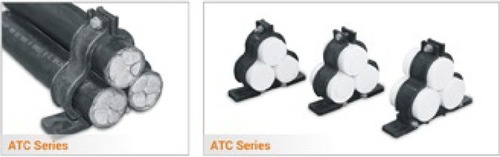

Range Of Trefoil Clamps:

Single Clamp:

Model No.	Min in mm	Max in mm	CC of Mounting Holes in mm
ATC 03	16	19	110
ATC 04	19	23	110
ATC 05	23.5	26.5	110
ATC 06	34.5	37.5	110
ATC 08	31	34	110
ATC 10	38	41	110
ATC 14	42	44	110
ATC 16	44	47.5	110
ATC 21	47.5	50	140
ATC 24	50.9	54	140
ATC 28	54.1	57.2	140
ATC 30	57.3	60.3	140
ATC 35	60.4	63.5	180
ATC 37	63.6	66.5	180
ATC 39	67	69	180
ATC 43	69	73	180
ATC 50	76	80	18

Model No.	Min.	Max.
ASC 16	42mm	46mm
ASC 26	52mm	56mm
ASC 30	57mm	60mm
ASC 40	64mm	70mm
ASC 75	85mm	105mm
ASC 90	112mm	120mm

Exceptional Corrosion and Fire Resistance

Designed for reliability, our Trefoil Clamps offer high resistance to corrosion and fire, making them perfect for demanding environments. Whether used indoors or outdoors, these clamps maintain integrity and performance against moisture and extreme temperatures, supporting operational safety and longevity.

Versatile Mounting and Size Options

With base mount and fixing hole features, the Trefoil Clamp supports a range of installation requirements. Accommodating cable diameters from 18 mm to 150 mm, and available in custom sizes, our clamps address diverse project specifications across industries like power distribution and construction.

Durable Materials and Standards Compliance

Constructed from robust materials-aluminium, stainless steel, GI, or mild steel-these clamps meet global standards IEC 61914 and IS 5568. The choice of premium material grades and finishes ensures enhanced mechanical strength, providing secure, stable support for cable management.

FAQ's of Trefoil Clamp:

Q: How do Trefoil Clamps ensure reliable cable management in power installations?

A: Trefoil Clamps provide stable and secure cleating of LV, MV, and HV power cables in trefoil formation, preventing electromagnetic interference, vibration, and mechanical stress. Their durable structure, high insulation resistance, and compliance with IEC 61914 ensure optimal safety and performance.

Q: What finish options are available for the Trefoil Clamp and how do they benefit outdoor use?

A: You can select from polished, hot dip galvanized (HDG), electro-galvanized, plain, or powder-coated finishes. These options enhance corrosion resistance, making the clamps suitable for harsh outdoor environments and extending their service life.

Q: When should custom-sized Trefoil Clamps be requested?

A: Custom-sized clamps are recommended when cable diameters fall outside the standard 18 mm to 150 mm range or if unique project requirements demand specific dimensions or mounting configurations, ensuring a perfect and secure fit.

Q: Where can these clamps be installed and what mounting options are supported?

A: Trefoil Clamps are versatile for both indoor and outdoor installations. Their base mount with fixing hole design allows for secure attachment to various surfaces, facilitating easy incorporation into electrical systems and construction projects.

Q: What is the process for installing Trefoil Clamps and what accessories are supplied?

A: Installation involves positioning the clamp over the cable trefoil formation and securing it to the mounting surface using supplied nuts, bolts, and washers as required. This straightforward process ensures reliable cable fixation and long-term stability.

Q: What are the primary applications and benefits of using Trefoil Clamps in construction and power projects?

A: The clamps are typically used to fix and support cables in power distribution, ensuring proper mechanical and electrical performance. Key benefits include enhanced fire safety, high mechanical strength, resistance to harsh environmental conditions, and improved organization within cable trays or duct systems.
