Gigabar FRP Bent Elements

Name: Gigabar FRP Bent Elements
Brand: Aeron Composite Limited
Price: 400.0 INR
Availability: InStock

Price 400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Gigabar FRP Bent Elements Specification

Density
2.1 Gram per cubic centimeter(g/cm3)

Usage & Applications
Infrastructure construction, marine works, roadways, and chemically aggressive environments

Shape

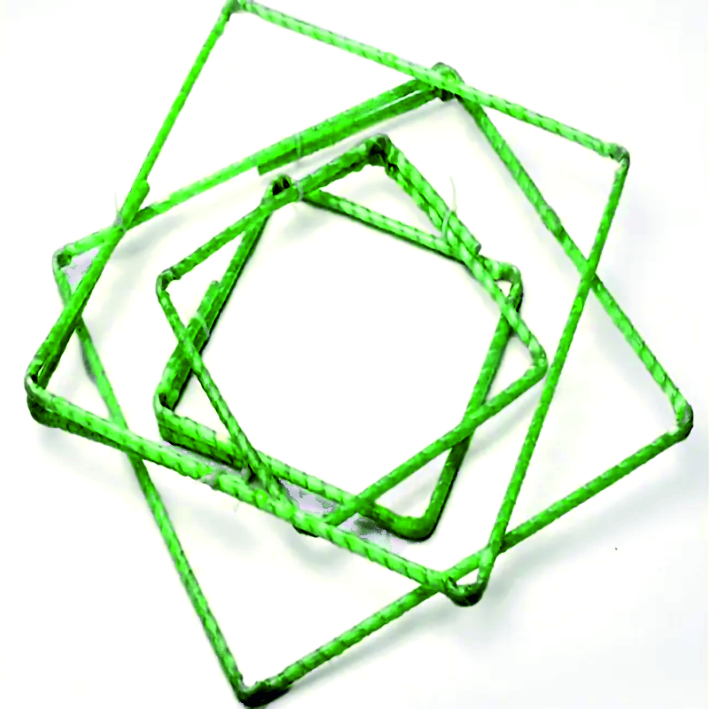

Bent square/circular stirrup or custom form

Coating Type
Epoxy or vinyl ester coated

Thermal Conductivity
Low (approximately 0.25 W/mK)

Glass Type
E-glass

Temperature
-40C to +120C operating range

GSM
Not applicable (solid rods)

Thickness
8 Millimeter (mm)

Usage
Drainage

Material
Fiberglass Reinforced Polymer (FRP)

Application
Drainage

Technique
Pultrusion process for FRP (Fiber Reinforced Polymer)

Surface Treatment
Corrosion resistant epoxy coating

Dimension (L*W*H)
Customizable as per project requirements

Width
8 Millimeter (mm)

Electrical Conductivity
Non-conductive

Color
Green (custom colors available)

Corrosion Resistance
Excellent, suitable for harsh environments

Elongation at Break
> 2%

Bond Strength (to concrete)
Enhanced surface profile for better bonding

Tensile Strength
1000 MPa

About Gigabar FRP Bent Elements

GIGABENT FRP Bent Elements are precision-engineered structural components made from Glass Fiber Reinforced Polymer (GFRP), combining high-strength glass fibers with a durable polymer resin matrix. Designed with customized bends, angles, or curves, GIGABENT is ideal for construction and infrastructure projects that demand flexibility and strength.

These elements are specially made to meet complex structural needs while offering excellent corrosion resistance, lightweight properties, and long-lasting performance. GIGABENT is the perfect choice for projects where traditional materials fall short due to environmental or design challenges.

Key Features:

Made from high-quality GFRP for superior strength
Tailor-made bends and shapes for specific structural requirements
Excellent resistance to corrosion, chemicals, and weather
Lightweight for easy handling and installation
Long service life with minimal maintenance
Ideal for complex construction, infrastructure, and industrial projects

Choose GIGABENT FRP Bent Elements by Aeron Composite Limited for durable, adaptable, and custom-fit reinforcement solutions.

Unmatched Strength and Durability

Gigabar FRP Bent Elements are engineered to deliver exceptional strength, durability, and reliability. With a tensile strength of 1000 MPa and excellent corrosion resistance, these products outperform conventional steel in harsh environments. The combination of fiberglass material and advanced epoxy or vinyl ester coating extends service life, making them ideal for infrastructure construction, marine works, and drainage systems.

Customizable Solutions for Every Project

Each Gigabar FRP Bent Element can be tailored in length, width, height, and geometric form (bent square, circular stirrup, or custom configurations) to precisely match project requirements. The 8 mm standard thickness and width support various applications while maintaining structural integrity. Custom color options and surface profiles can further enhance compatibility and visual integration in diverse construction projects.

Superior Bond and Installability

The enhanced surface profile of Gigabar FRP Bent Elements ensures improved adhesion with concrete, reducing slippage and increasing the stability of reinforcements in drainage and infrastructure builds. Lightweight yet robust, their installation is simplified, while their non-conductive nature enhances safety in electrical and marine settings.

FAQ's of Gigabar FRP Bent Elements:

Q: How are Gigabar FRP Bent Elements manufactured?

A: They are produced using the pultrusion process, which continuously pulls strands of E-glass fiberglass through a resin bath (epoxy or vinyl ester) and shaping dies, resulting in solid, corrosion-resistant rods with customizable dimensions and shapes.

Q: What benefits do FRP Bent Elements offer over traditional steel reinforcement?

A: Gigabar FRP Bent Elements are significantly lighter, non-corrosive, non-conductive, and have high tensile strength. These attributes ensure long service life in harsh or chemically aggressive environments, unlike steel, which is susceptible to rust and electrical conduction.

Q: When should I opt for custom shapes or colors for these FRP elements?

A: Custom shapes or colors are advised when specific design, aesthetic, or identification needs arise in your project, such as unique stirrup forms, project branding, or enhanced visibility. Customization ensures the elements fully integrate with your engineering requirements.

Q: Where are Gigabar FRP Bent Elements typically used?

A: They are widely applied in drainage structures, marine works, roadways, infrastructure construction, and environments subject to chemical exposure or corrosion, thanks to their resilience and adaptable design.

Q: What is the process for installing Gigabar FRP Bent Elements in concrete structures?

A: Installation is similar to traditional steel reinforcement. The enhanced surface profile provides excellent grip with concrete, and their light weight simplifies handling, reducing labor time and effort during placement and securing.

Q: How does the surface treatment improve the performance of FRP Bent Elements?

A: A corrosion-resistant epoxy or vinyl ester coating shields the FRP core from environmental degradation, while the enhanced surface profile increases bond strength with concrete, ensuring longevity and robust structural integration.
